Welcome to Guangxi Kongshan Machinery Equipment Co., Ltd.

KS666

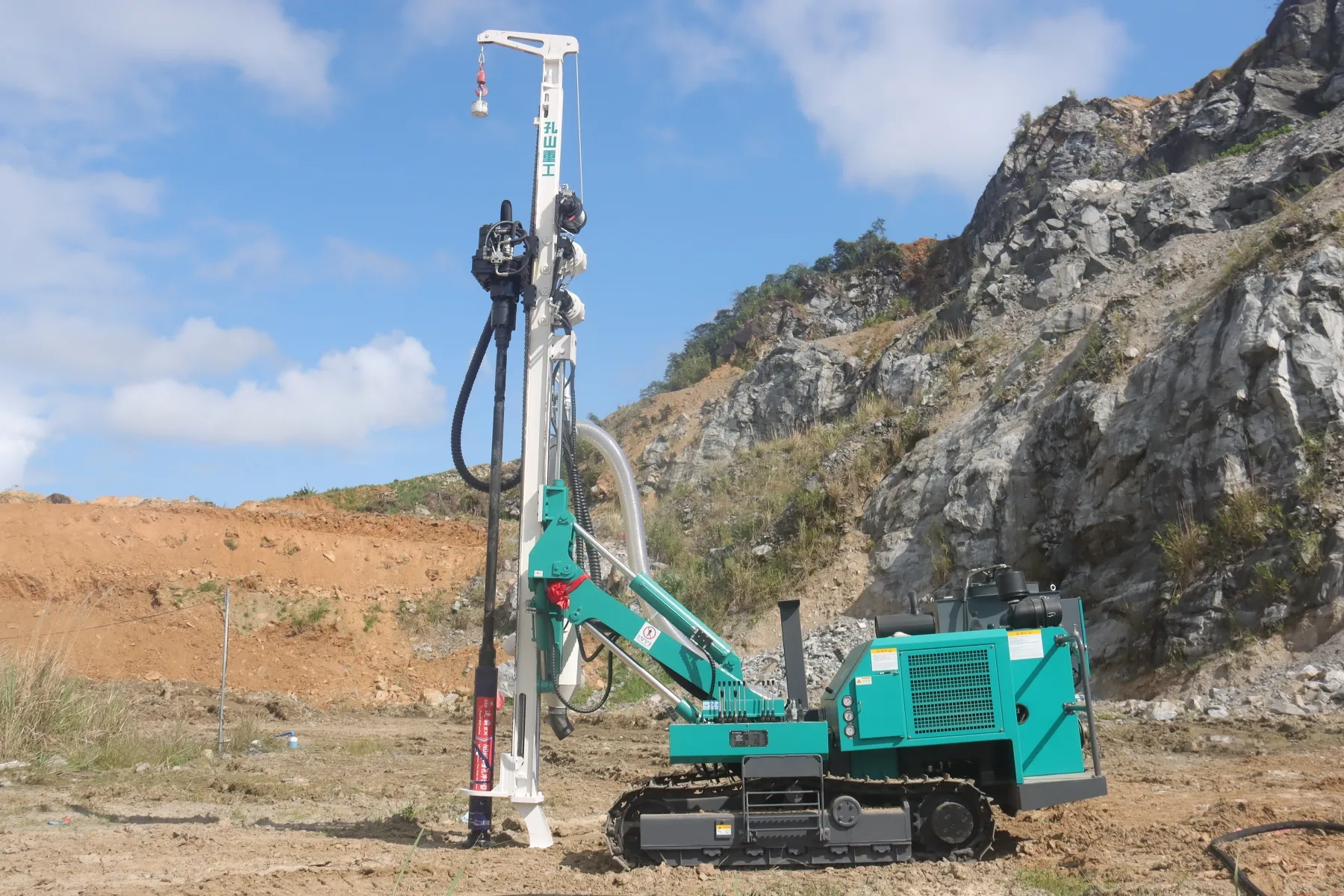

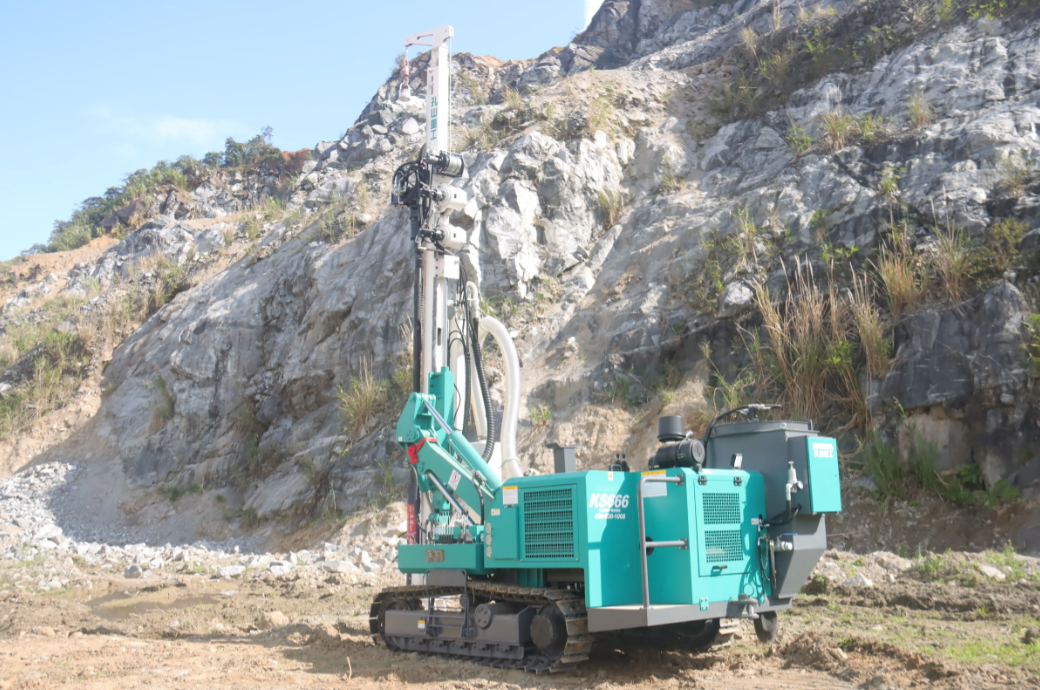

KS666 Photovoltaic drilling rig

OnLine

TEL : +8618029255858

1.  Product Features



(1) Use a rationally designed and innovative crawler-type hydraulic down-the-hole drilling rig with a simple design, and it is used in conjunction with a two-stage screw-type high-pressure air compressor, which is more economical.



(2) The structure is simple and compact, and the fuel consumption is low.  During maintenance and repair, there is no need to climb up and down, which is convenient and safe.



(3) Applicable to quarries, limestone mines and open-pit mines, building foundation excavation, rock drilling operations in water conservancy, power station, construction, transportation and construction projects, etc., to provide you with a set of safe and effective large aperture solution.



(4) Powerful and excellent performance:



1.  Two sets of walking positioning control panels;



2.  Reliable and simple hydraulic system;



3.  Clean working environment;



4.  High torque rotary motor;

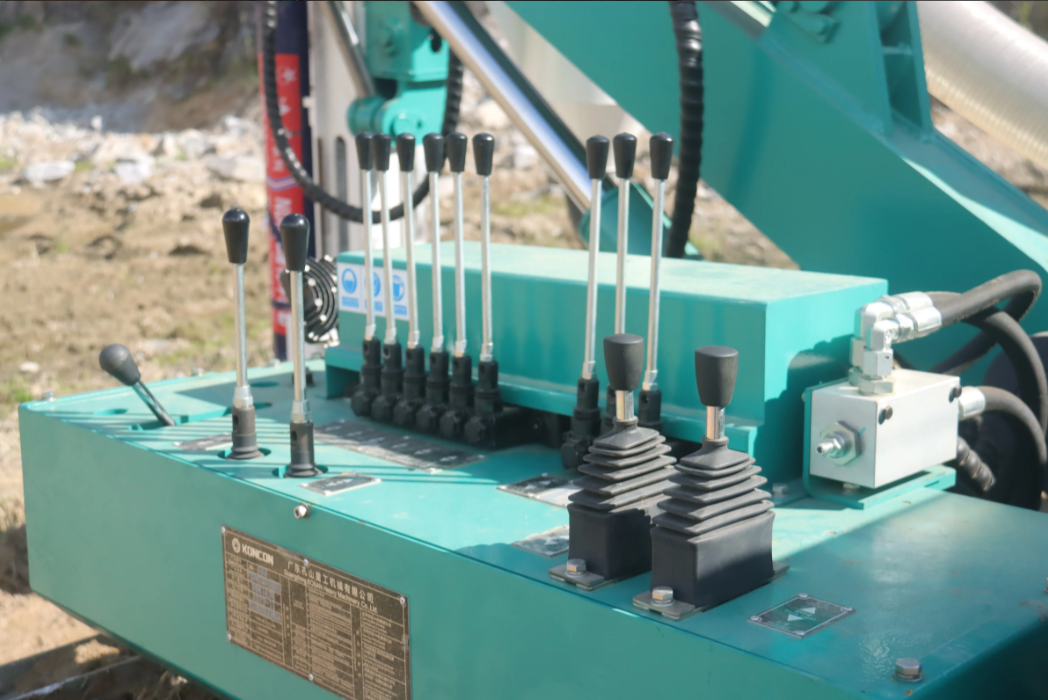

5.  Integrated operation panel with reasonable layout;

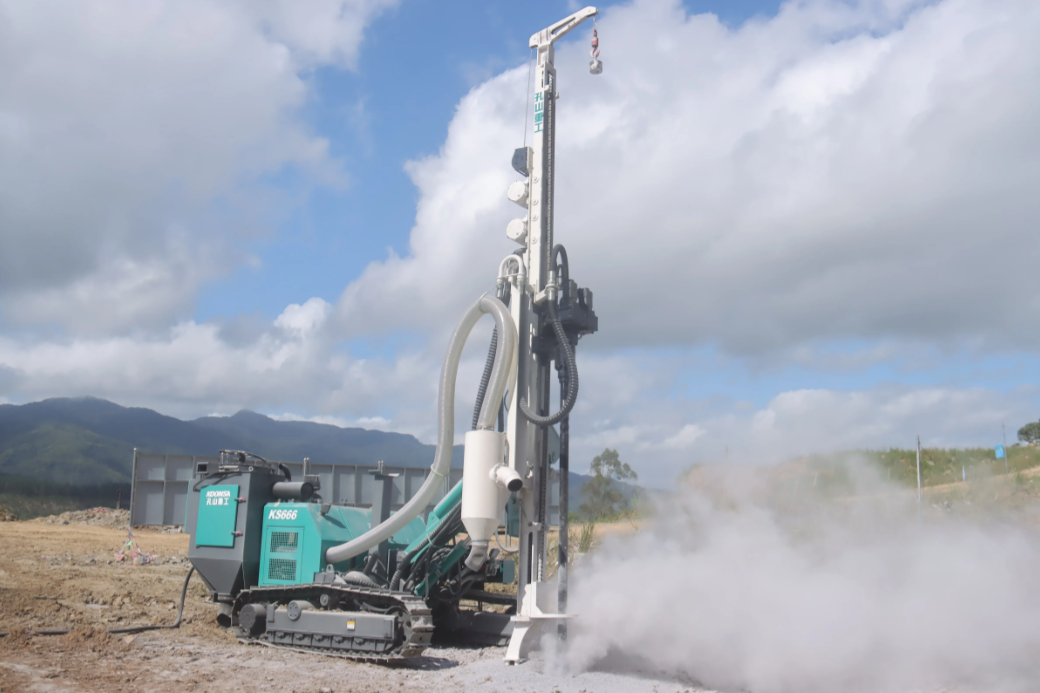

6.  Two-stage dry dust collection device;



7.  Powerful hydraulic traveling mechanism;



8.  Walking control system with humanized design;



9.  Low fuel consumption;



10.  Superior performance;

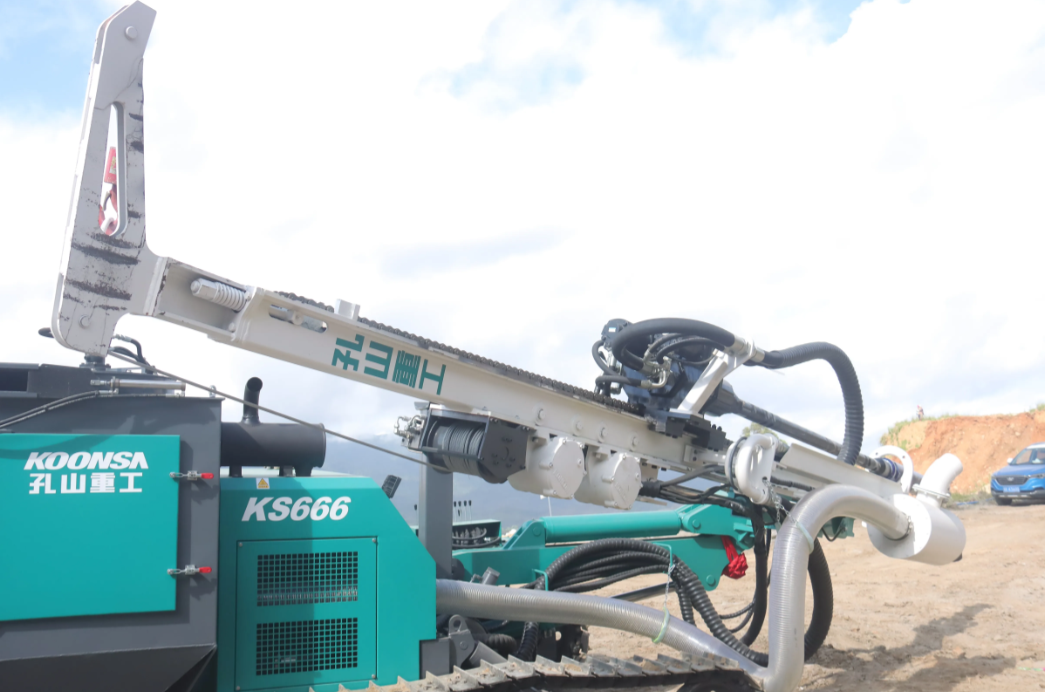

11.  High-strength propulsion beam and high-torque swivel head;



12.  Convenient operation;



2.  Product advantages



Powerful travel motor, flexible mobility, high climbing ability

The compact design of crawler-type hydraulic down-the-hole drilling rig, its safe, flexible, stable chassis frame, powerful travel motor and suspension crawler ensure flexible mobility, high climbing ability and is very unique among drilling rigs of the same level.  outstanding.

the

3.  After-sales service



Kongshan Heavy Industry promises to provide assistance services to customers.    When it is necessary to provide assistance, we will ensure that the response within 1 hours .    And a variety of care services: including maintenance period reminder service, post-warranty investigation return visit service, opinion and suggestion collection return visit service, whole machine commissioning reminder service before operation, whole machine maintenance reminder service after operation, whole machine preservation technical support service during idle period, etc. .

Technical parameters of photovoltaic drilling rig KS666

Usage information

Recommended aperture range: ø115-450mm

Applicable drill pipe specification: ø76/89/102/114×3000mm

Applicable impactor specification: 4"/5"/6"/8"/10"/12"

Suitable for twist drill pipe: consistent with drilling diameter

Rated speed: 40/80/rpm

Maximum torque: 4000/8500Nm

Power head drill pipe thread: API2 1/3REG

Hydraulic motor driven propulsion beam

Advance stroke: 4100mm

Propulsion compensation: 1260mm

Propulsion speed: 0.5M/s

Large propulsion force: 1.2T

Maximum lifting force: 4T

Beam front swing Angle: ±30°

Base plate

Track outer width: 2300mm

Chassis leveling Angle: ±13°

Climbing capacity: ≤25°

Travel speed: 3.0km/h

Standard equipment: upper operation, foot pedals and drill pipe holder

engine

Yuchai engine meets national III emission standards

Rated power: 73.5KW

Recommended working speed: 1500r/min

Transport size: 7000*2300*2760mm

Weight: 8100Kg

Vacuum cleaner: Dry/Wet (optional)

Lift: 1.5T

Winch: 8T

Tank capacity: 90L
